The OP's question might be interpreted as "draw the R logo in R",
meaning base R graphics. This interpretation excludes packages like
rsvg that use a rendering engine such as
https://wiki.gnome.org/Projects/LibRsvg (the R here is for
"Resplendent SVG", not the R language).

Thanks to Barry for describing the approach. Using Barry's email as
context, I asked Cursor to write R code to parse Rlogo.svg and make a
plot with base R graphics. It took a few debugging iterations to get a
working script, and gradients currently aren't working. The only CRAN
package used in the script is xml2.

Chat history and code are here: https://github.com/jedick/R-svg-interpreter

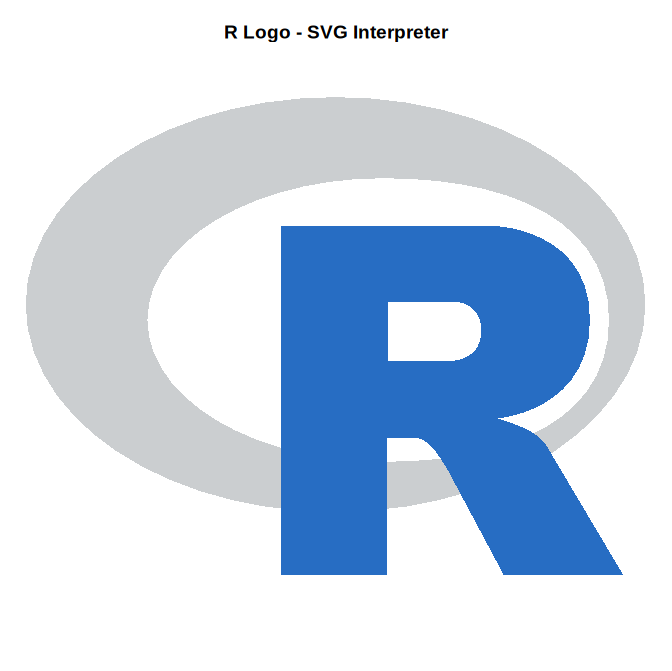

Code to generate Rlogo.png, assuming Rlogo.svg is in the current directory:
source("svg_interpreter.R")
savePlot("Rlogo.png")

Jeff


On Mon, Jun 30, 2025 at 4:23 PM Barry Rowlingson
<b.rowlingson using lancaster.ac.uk> wrote:
>
> The SVG isn't that complex, it defines two colour gradients (one for the R
> and one for the ring) and then draws each one using a series of cubic
> bezier curves and lines
>
> These are in <path> tags in the SVG which look like this:
>
> M361.453,485.937 C162.329,485.937 0.906,377.828 0.906,244.469
> C0.906,111....etc
>
>  M is "move to" and then "C" defines a curve, "L" defines a straight line I
> don't think any other path items are used.
>
> There's two paths, each being two parts because both the R and the ring
> have holes in them.
>
>  If you want to draw this from scratch in R code, first write (or find)
> code to draw cubic bezier curves as per the SVG spec, then extract the
> coordinates from the path attributes in the SVG then make polygons and
> shade them using the colour gradients at the start of the SVG...
>
> Barry
>
>
>
